How to Install Windows 8 Using VMware Fusion

  Matt Cone       December 27, 2011      Tutorials Mac Apps


Maybe you’ve heard the buzz about Windows 8, the new operating system being developed by Microsoft. It’s not for sale yet, but if you’re feeling adventurous, you can install Windows 8 for free in a virtual machine on your Mac. Using a product called VMware Fusion (free trial, $49.99) is a great way to test Windows 8 in a sandboxed environment.

Here’s how to install Windows 8 on your Mac using VMware Fusion:

  1. Download the Windows 8 .iso file from the Microsoft Windows Dev Center. It’s currently a free download. The 64-bit version is recommended. (Unless you’ll be coding, you don’t need to download the file with the developer tools.)

  2. If you haven’t already, download the VMware Fusion application. There is a free 30-day trial available. If you decide you want to keep it, you can purchase it for $49.99 as of December 2, 2011.

  3. Open the VMware Fusion application.

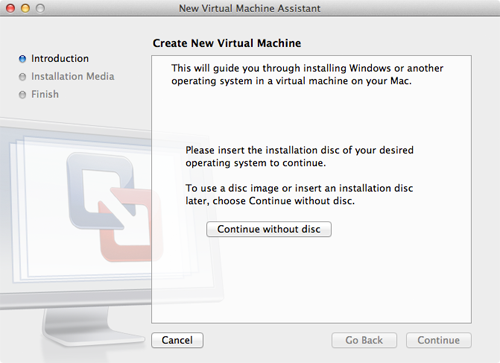

  4. From the File menu, select New. The New Virtual Machine Assistant window shown below appears.

    Installing Windows using VMware Fusion

  5. Click Continue without disc. The window shown below appears.

    Installing Windows using VMware Fusion

  6. Click the Use operating system installation disc or image button, if it is not already selected.

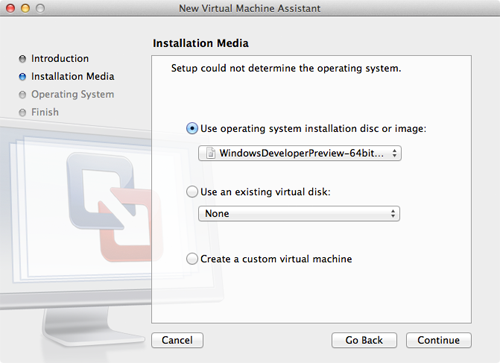

  7. To install Windows 8 from the .iso file you downloaded, select Choose a disc or disc image… from the menu with the same name. The selection window appears. Select the .iso file you downloaded from the Microsoft website, and then click Open. The .iso file appears in the menu as shown below.

    Installing Windows using VMware Fusion

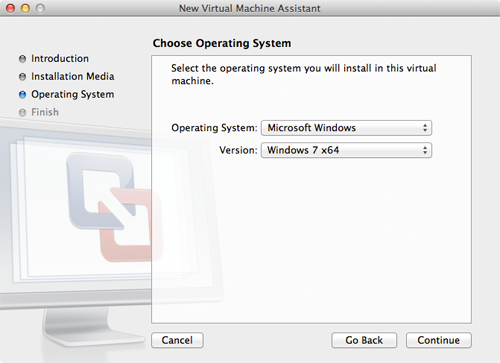

  8. Click Continue. The window shown below appears.

    Installing Windows using VMware Fusion

  9. From the Operating System menu, select Microsoft Windows.

  10. From the Version menu, select Windows 7 x64 if you downloaded the 64-bit version of Windows 8, or Windows 7 if you downloaded the 32-bit version.

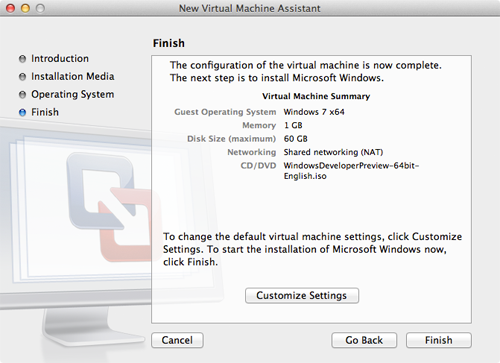

  1. Click Continue. The window shown below appears.

    Installing Windows using VMware Fusion

  2. VMware Fusion displays a summary of the virtual machine you’re able to create. By default, it will allocate 1GB of RAM and a maximum of 60GB of your computer’s hard disk space to Windows 8. (The virtual machine only uses the amount of space necessary - the base installation only consumes about 4GB of hard disk space.) You could customize these settings now, but it’s not necessary - you can always change them later by selecting Virtual Machine → Settings after the virtual machine has booted. Click Finish.

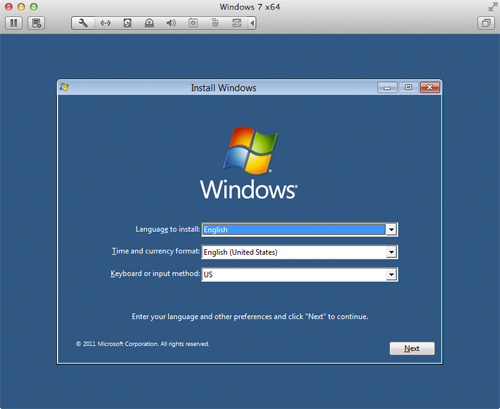

  3. You are prompted to save the virtual machine to your hard disk. Leave the file name and location set to the default settings. Click Save. VMware creates and boots the virtual machine. The window below appears after Windows 8 boots for the first time.

    Installing Windows using VMware Fusion

  4. Select a language, time format, and keyboard layout.

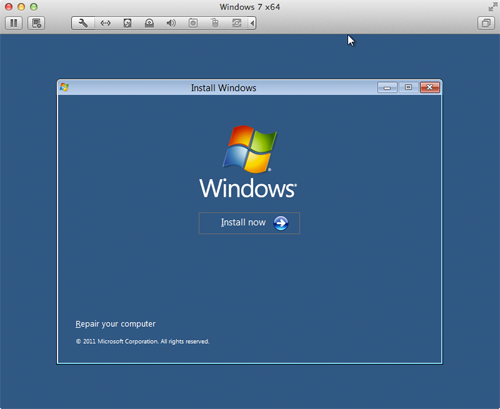

  5. Click Next. The window shown below appears.

    Installing Windows using VMware Fusion

  6. Click Install Now. The window shown below appears.

    Installing Windows using VMware Fusion

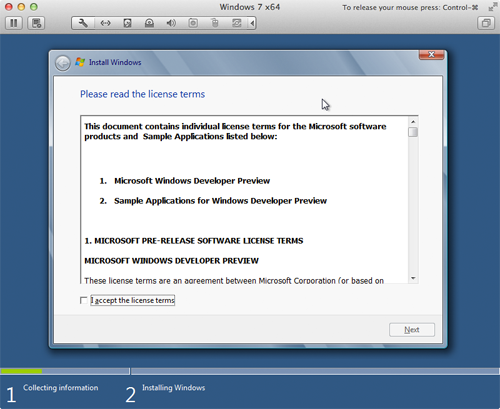

  7. Select the I accept the licence terms checkbox.

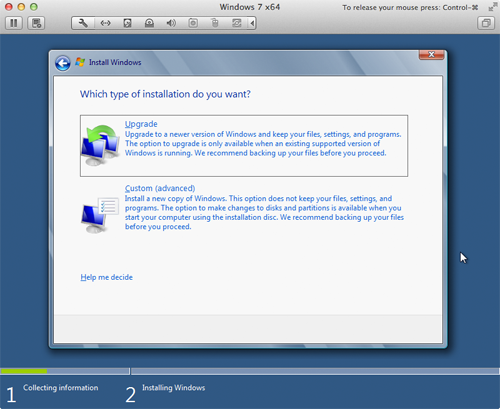

  8. Click Next. The window shown below appears.

    Installing Windows using VMware Fusion

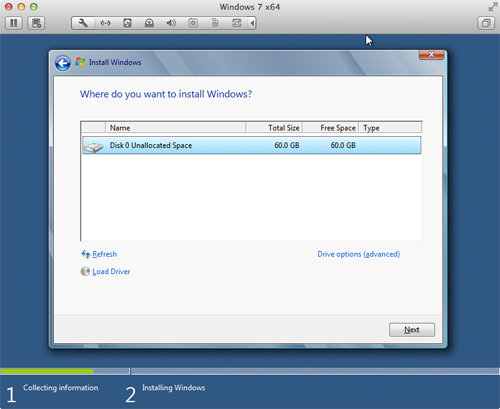

  9. Click Custom (advanced). This tells Windows 8 that you are installing it on a fresh hard disk. The “hard disk” is virtual, of course, but Windows 8 doesn’t know that. The window shown below appears.

    Installing Windows using VMware Fusion

  10. The virtual hard disk should be the only option displayed. Select it, and then click Next. The window shown below appears.

    Installing Windows using VMware Fusion

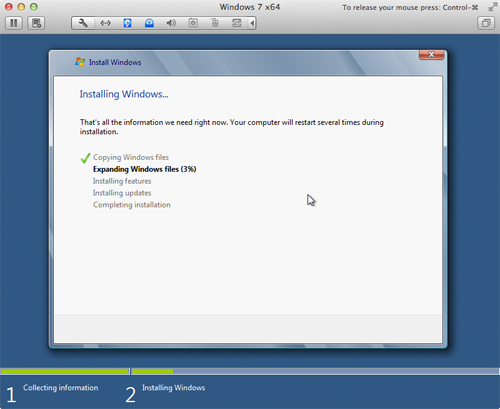

  11. You’ve finished providing information and Windows 8 is finally installing. Go get a cup of coffee - this can take up to half an hour. When the installation process is finished, the window shown below will appear.

    Installing Windows using VMware Fusion

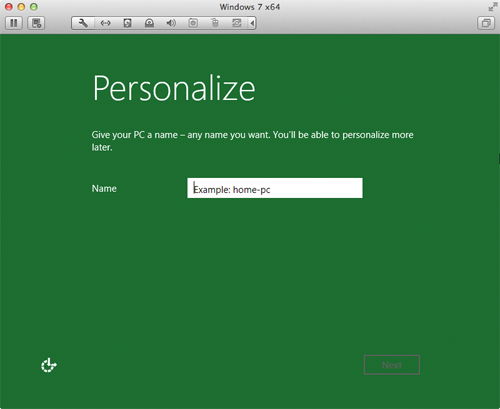

  12. Aha! You only though you were finished providing information. Now you need to type a name for the virtual Windows 8 computer and click Next. The window shown below appears.

    Installing Windows using VMware Fusion

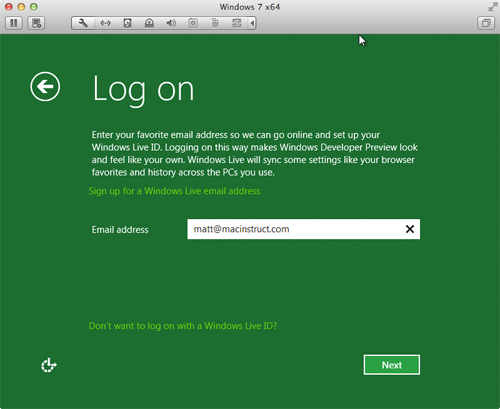

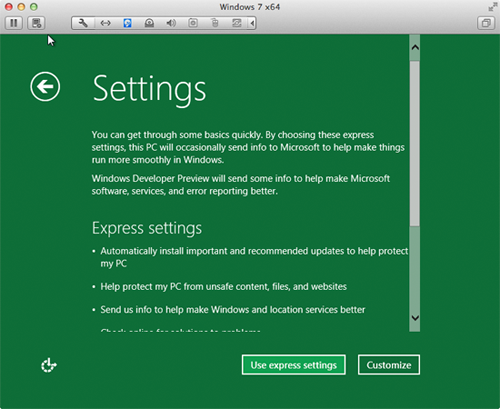

  13. Do you want to customize all of these settings? Probably not right now, at least not for this Windows 8 preview running in a virtual machine. Click Use express settings. The window shown below appears.

    Installing Windows using VMware Fusion

  14. If you have a Windows Live ID, enter the email address you use for that account. Otherwise, just type your email address and click Next. The window shown below appears.

    Installing Windows using VMware Fusion

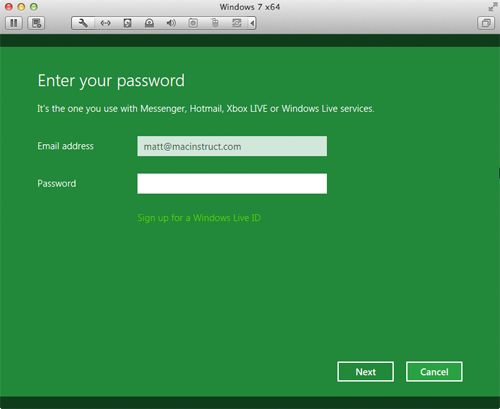

  15. Enter the password for your Windows Live ID, or click Sign up for a Windows Live ID and follow the instructions. When finished, click Next.

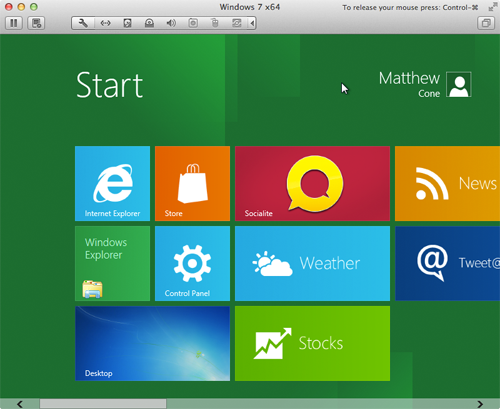

  16. Windows “finalizes your settings” and “prepares your PC.” (Sorry, the Microsoft-speak is too funny!) Once it’s done, your virtual machine will be booted into Windows 8, as shown below.

    Installing Windows using VMware Fusion

  17. As you can tell from the screenshot, this version of Windows is radically different than previous versions. Or is it? Click the Windows Explorer button and you’re back in the familiar looking Windows interface. Go ahead and click that button now. (You can always click the Windows “Start” button to get back to the new Windows 8 interface.)

  18. The last thing we need to do is install VMware Tools. This package makes Windows 8 look and feel better inside the virtual machine on your Mac. To get started, select Install VMware Tools from the Virtual Machine menu.

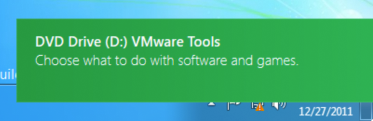

  19. VMware asks you if you want to connect the VMware Tools installer to the virtual machine. Click Install. The dialogue shown below appears in the virtual machine.

    Installing Windows using VMware Fusion

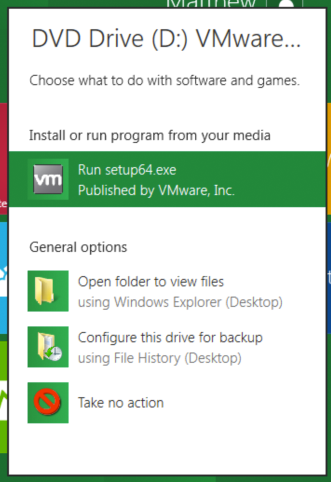

  20. Click that dialogue window. The window shown below appears.

    Installing Windows using VMware Fusion

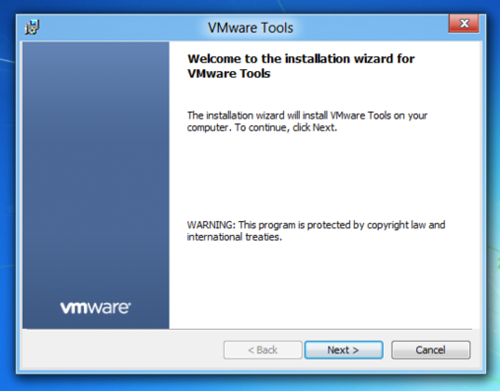

  21. Click Run setup64.exe. The VMware Tools installer appears, as shown below.

    Installing Windows using VMware Fusion

  22. Click Next. The window shown below appears.

    Installing Windows using VMware Fusion

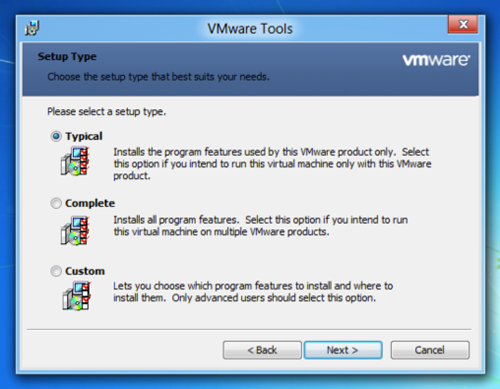

  23. Select Typical, and then click Next.

  24. Click Install. VMware Tools installs on the Windows 8 virtual machine. Once the installation completes, you’ll need to restart the virtual machine. When it turns back on, the display should look crystal clear - that’s how you know that you successfully installed VMware Tools in the virtual machine running Windows 8!

Now you have Windows 8 running in a virtual machine on your Mac. A lot has changed since Windows 7, so have fun messing around!
